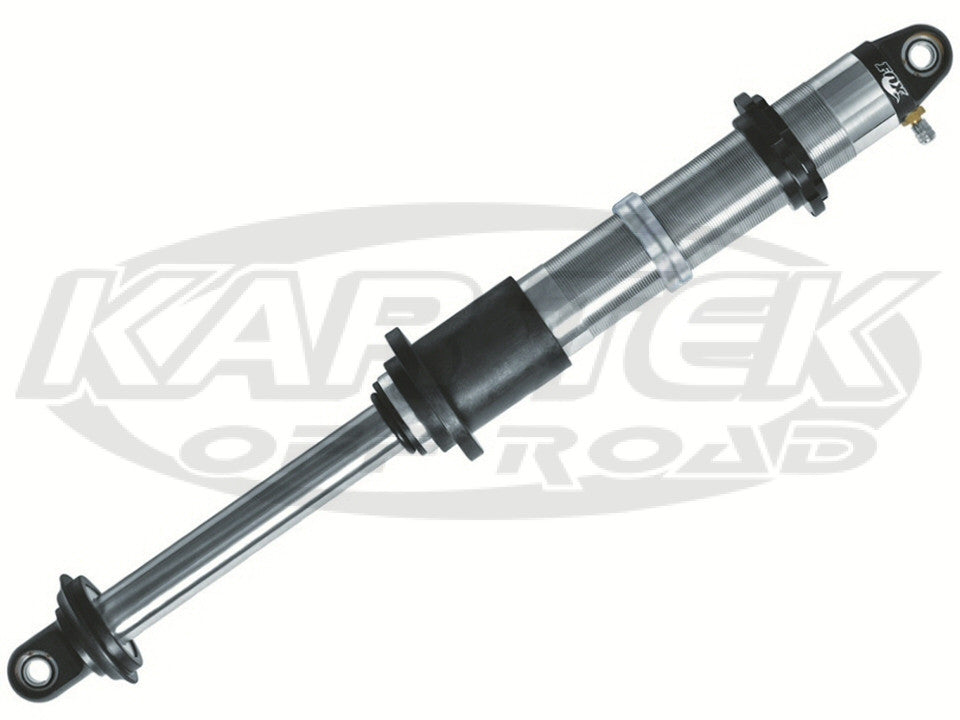

Fox Racing Air Shocks 2" Coil Over Body 9.35" Stroke 1-1/4" Shaft Emulsion Shock Without Reservoir
Invented by Bob Fox in 1974, air shocks offer infinite ride height settings with simple nitrogen gas pressure changes in addition to their compression and rebound damping adjustability.
Factory Series 980-02-070 Dimensions:
Setup For Dual Spring Rate
22" Maximum Combined Total Spring Length
Typically Customers Purchase 10" Top Spring and 12" Bottom Spring
2.0" Diameter
9.35" Travel
26.630" Extended
17.290" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
