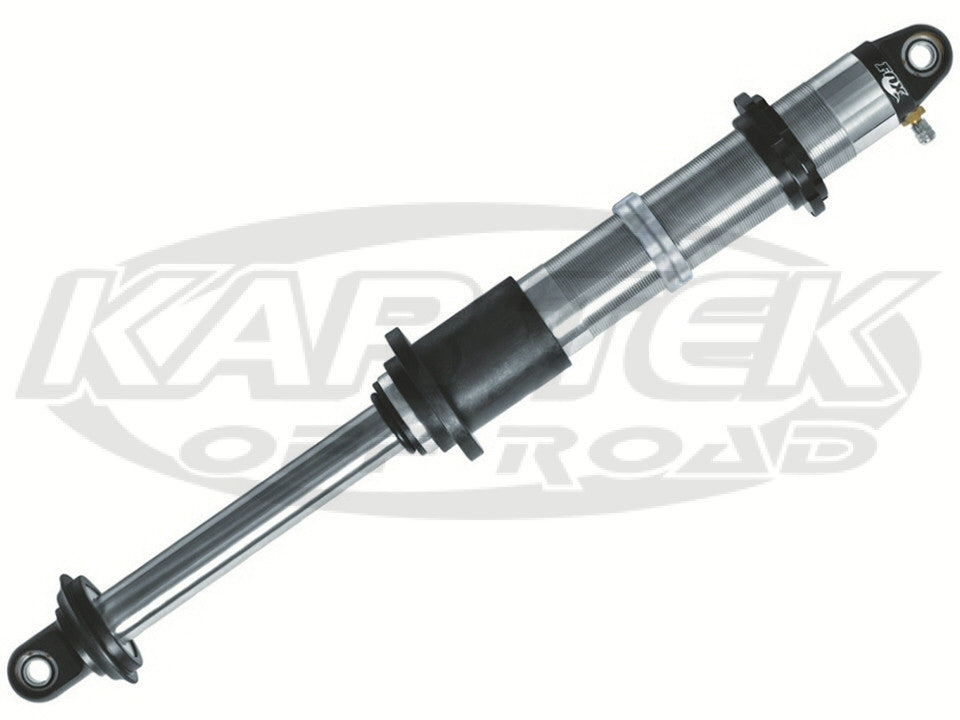

Fox Racing Air Shocks 2" Coil Over Body 11.35" Stroke 1-1/4" Shaft Emulsion Shock Without Reservoir
Invented by Bob Fox in 1974, air shocks offer infinite ride height settings with simple nitrogen gas pressure changes in addition to their compression and rebound damping adjustability.
Factory Series 980-02-071 Dimensions:
Setup For Dual Spring Rate
2.0" Diameter
11.35" Travel
30.630" Extended
19.290" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Factory Series 980-02-071 Dimensions:
Setup For Dual Spring Rate
2.0" Diameter
11.35" Travel
30.630" Extended
19.290" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Invented by Bob Fox in 1974, air shocks offer infinite ride height settings with simple nitrogen gas pressure changes in addition to their compression and rebound damping adjustability.
Factory Series 980-02-071 Dimensions:
Setup For Dual Spring Rate
2.0" Diameter
11.35" Travel
30.630" Extended
19.290" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Factory Series 980-02-071 Dimensions:
Setup For Dual Spring Rate
2.0" Diameter
11.35" Travel
30.630" Extended
19.290" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
