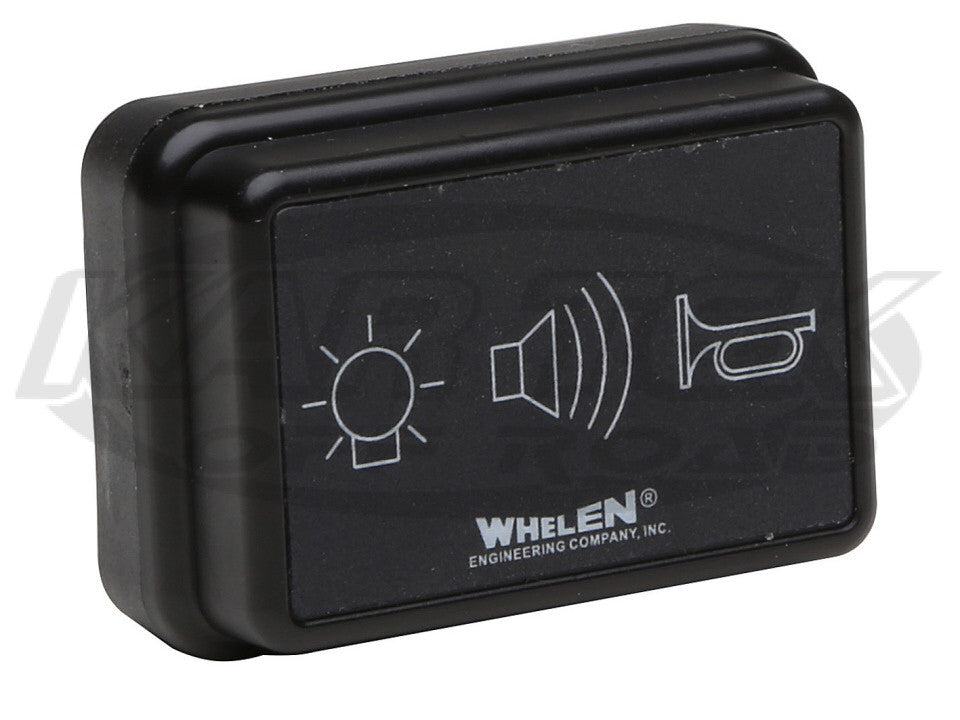

Whelen WSSMSW3 Switch For Their WSSC30 Siren Has 3 Switches For Siren, Horn And Auxiliary Lights
This switch can clamp to any diameter bar using a hose clamp. After you program the siren's mode, this module gives you 3 switches to activate 2 functions on the siren and auxiliary lights. This is an example using the default Mode 1 programming on the siren
-
Switch 1
- White with brown stripe wire on siren connects to the gray wire of this switch.
- First push of switch does 1st tone
- Second push of switch does 2nd tone
- Two quick taps of switch turns siren off
-
Switch 2
- White with red stripe wire on siren connects to the brown wire of this switch.
- Push of switch activates horn
-
Switch 3 activates your auxiliary lighting
-
You can program 5 modes with on the siren by changing the dip switches on the back of it:
- Mode 1: (Default)
- Switch 1 White/Brown Wire: Instant HF 2-cycle (wail-yelp)
- Switch 2 White/Red Wire: Air Horn
- Mode 2:
- Switch 1 White/Brown Wire: Instant HF 3-cycle (wail-yelp-piercer)
- Switch 2 White/Red Wire: Air Horn
- Mode 3:
- Switch 1 White/Brown Wire: Tone 1 (Wail)
- Switch 2 White/Red Wire: Tone 2 (Yelp)
- Mode 4:
- Switch 1 White/Brown Wire: Tone 1 (Wail)
- Switch 2 White/Red Wire: Air Horn
- Mode 5:
- Switch 1 White/Brown Wire: 10 sec. override cycle (Tone 1 - Tone 2)
- Switch 2 White/Red Wire: Air Horn
-
You have an available 10 tones to choose from on the siren depending on the mode that you program fist:
- Wail
- Yelp
- Piercer
- Hi/Lo
- Y249
- Warble
- Woop
- Tri Tone
- Alt. Wail
- Martin Tone
