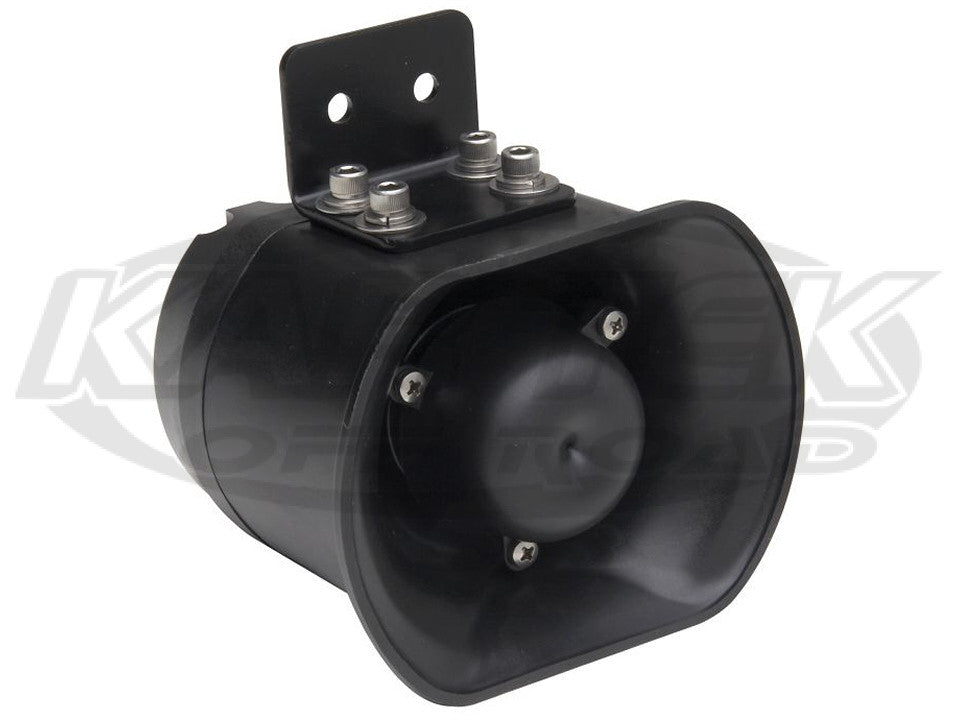

Whelen WSSC30 30 Watt Siren, Horn And Speaker Combination Programmable For UP To 10 Tones

Racegear WA

$602.24 $632.36
SKU: RGWA-WHEWSSC30

This is an example using the default Mode 1 programming

Black Wire: Battery (-) Negative Terminal
Red Wire: Battery (+) Positive Terminal

    Switch 1
  • White With Brown Stripe Wire: Connect the wire to one side of the momentary switch. The other side of the switch must be connected to the (-) NEGATIVE battery terminal.
  • First push of switch does 1st tone
  • Second push of switch does 2nd tone
  • Two quick taps of switch turns siren off
    Switch 2
  • White With Red Stripe Wire: Connect the wire to one side of the momentary switch. The other side of the switch must be connected to the (-) NEGATIVE battery terminal.
  • Push of switch activates horn
    You can program 5 modes with this siren by changing the dip switches on the back of it:

  • Mode 1: (Default)
    • Switch 1 White/Brown Wire: Instant HF 2-cycle (wail-yelp)
    • Switch 2 White/Red Wire: Air Horn
  • Mode 2:
    • Switch 1 White/Brown Wire: Instant HF 3-cycle (wail-yelp-piercer)
    • Switch 2 White/Red Wire: Air Horn
  • Mode 3:
    • Switch 1 White/Brown Wire: Tone 1 (Wail)
    • Switch 2 White/Red Wire: Tone 2 (Yelp)
  • Mode 4:
    • Switch 1 White/Brown Wire: Tone 1 (Wail)
    • Switch 2 White/Red Wire: Air Horn
  • Mode 5:
    • Switch 1 White/Brown Wire: 10 sec. override cycle (Tone 1 - Tone 2)
    • Switch 2 White/Red Wire: Air Horn
    You have an available 10 tones to choose from with this siren depending on the mode that you program fist:

  • Wail
  • Yelp
  • Piercer
  • Hi/Lo
  • Y249
  • Warble
  • Woop
  • Tri Tone
  • Alt. Wail
  • Martin Tone
