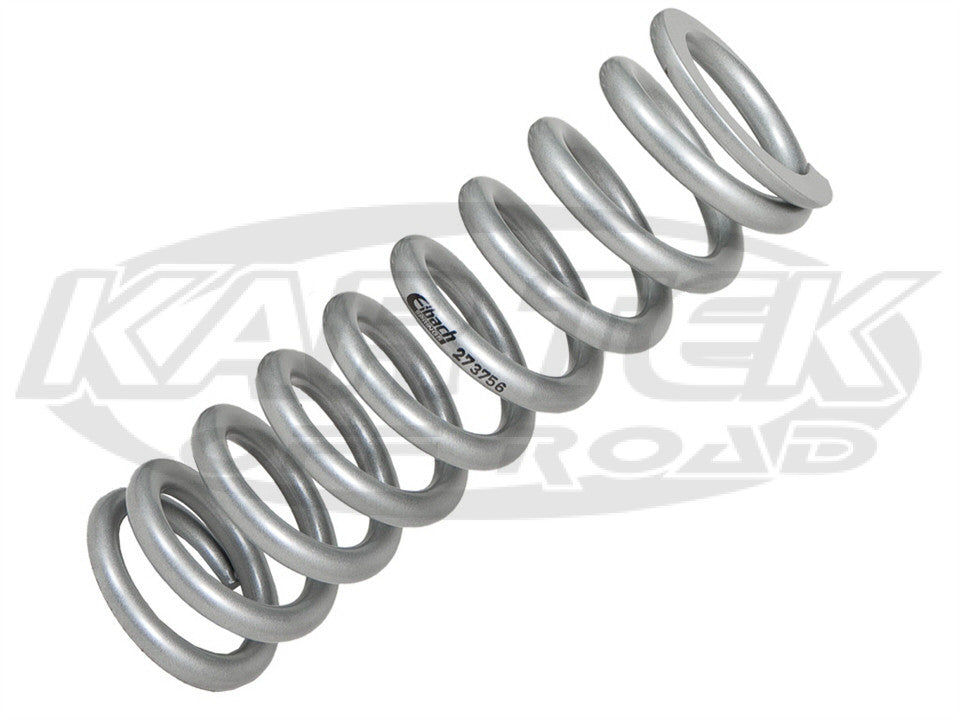

Silver Eibach 500 Pound 22" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
On a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.
Eibach Part Number:
2200.375.0500s
2200-375-0500s
Length: 22 Inches / 559mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 500 lbs/inch - 8.93 kg/mm - 88 N/mm
Full Compressed Height: 10.07 Inches / 256mm
Travel: 11.93 Inches / 303mm
Load At Full Compression: 5964lbs / 26529N
Weight: 24.07lbs / 10.92kgs
2200.375.0500s
2200-375-0500s
Length: 22 Inches / 559mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 500 lbs/inch - 8.93 kg/mm - 88 N/mm
Full Compressed Height: 10.07 Inches / 256mm
Travel: 11.93 Inches / 303mm
Load At Full Compression: 5964lbs / 26529N
Weight: 24.07lbs / 10.92kgs
