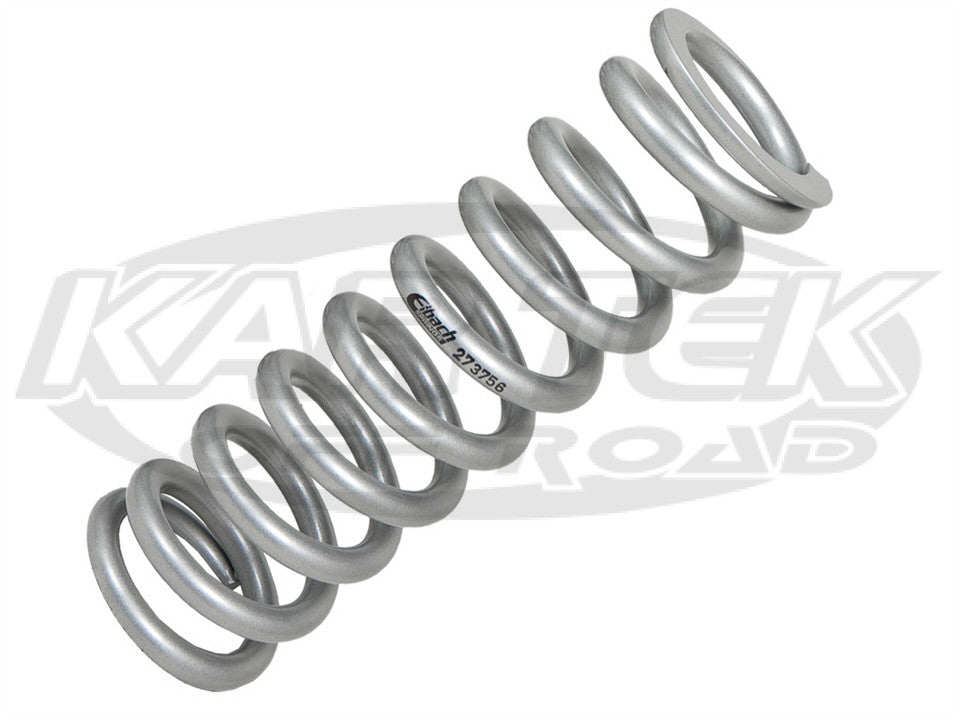

Silver Eibach 450 Pound 18" Tall Spring For 2.5" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.
Eibach Part Number:
1800.300.0450s
1800-300-0450s
Length: 18 Inches / 457mm
Inside Diameter: 3 Inches / 76mm
Spring Rate: 450 lbs/inch - 8.04 kg/mm - 79 N/mm
Full Compressed Height: 8.19 Inches / 208mm
Travel: 9.81 Inches / 249mm
Load At Full Compression: 4415lbs / 19639N
Weight: 12.77lbs / 5.79kgs
1800.300.0450s
1800-300-0450s
Length: 18 Inches / 457mm
Inside Diameter: 3 Inches / 76mm
Spring Rate: 450 lbs/inch - 8.04 kg/mm - 79 N/mm
Full Compressed Height: 8.19 Inches / 208mm
Travel: 9.81 Inches / 249mm
Load At Full Compression: 4415lbs / 19639N
Weight: 12.77lbs / 5.79kgs
