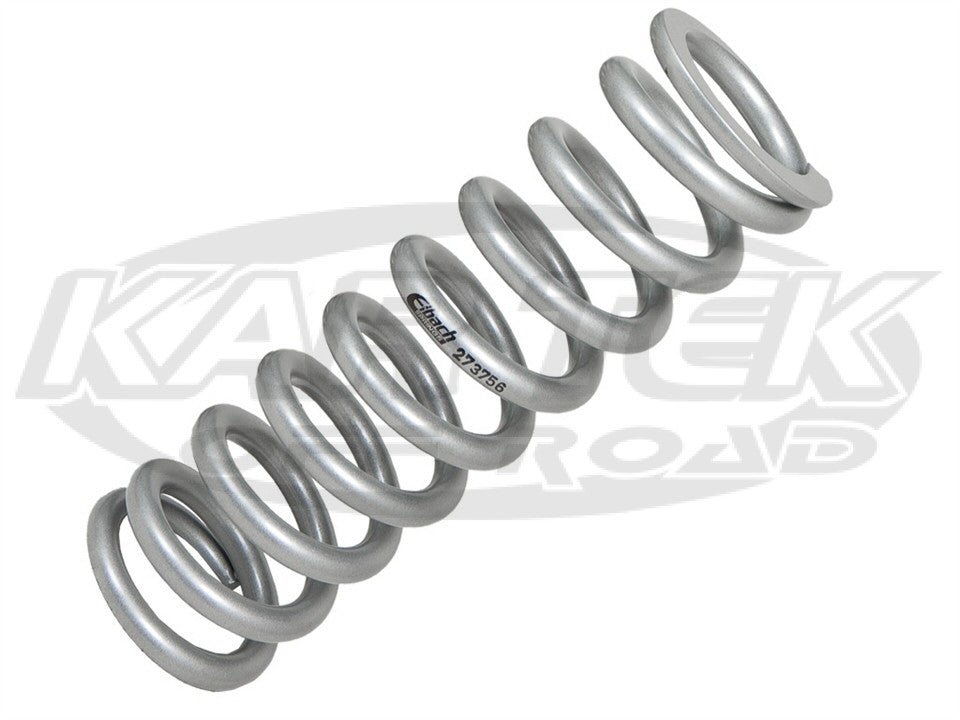

Silver Eibach 300 Pound 16" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.
Eibach Part Number:
1600.375.0300s
1600-375-0300s
Length: 16 Inches / 406mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 300 lbs/inch - 5.36 kg/mm - 53 N/mm
Full Compressed Height: 5.8 Inches / 147mm
Travel: 10.2 Inches / 259mm
Load At Full Compression: 3060lbs / 13613N
Weight: 10.25lbs / 4.65kgs
1600.375.0300s
1600-375-0300s
Length: 16 Inches / 406mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 300 lbs/inch - 5.36 kg/mm - 53 N/mm
Full Compressed Height: 5.8 Inches / 147mm
Travel: 10.2 Inches / 259mm
Load At Full Compression: 3060lbs / 13613N
Weight: 10.25lbs / 4.65kgs
