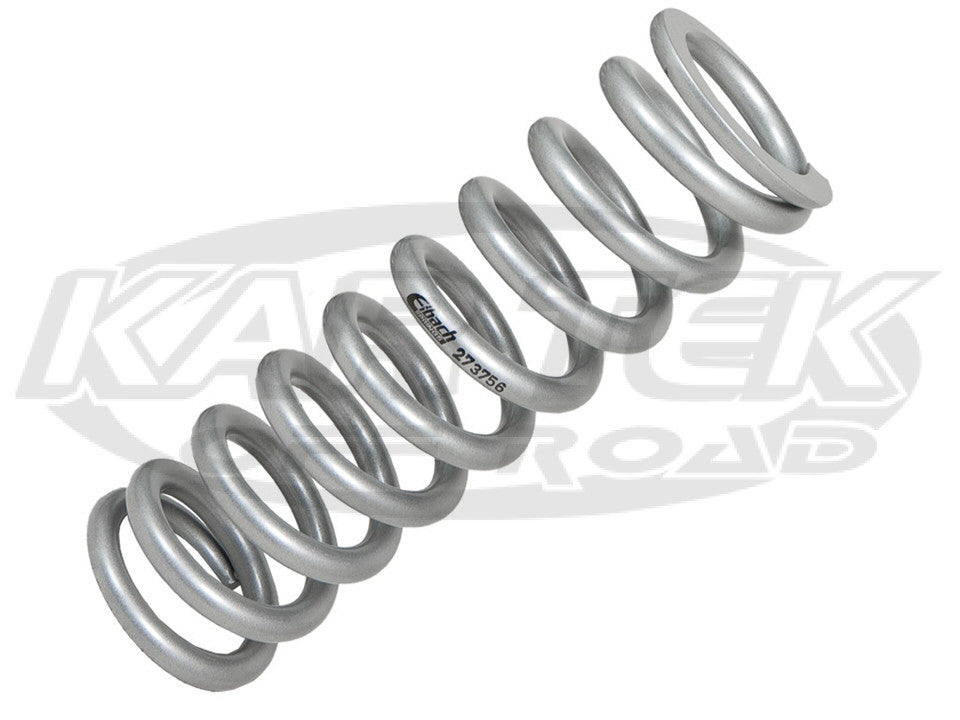

Silver Eibach 250 Pound 14" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Racegear WA

$340.39 $357.41
SKU: RGWA-ERS1400375250

If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
1400.375.0250s
1400-375-0250s
Length: 14 Inches / 356mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 250 lbs/inch - 4.46 kg/mm - 44 N/mm
Full Compressed Height: 4.53 Inches / 115mm
Travel: 9.49 Inches / 241mm
Load At Full Compression: 2370lbs / 10542N
Weight: 7.05lbs / 3.2kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position
