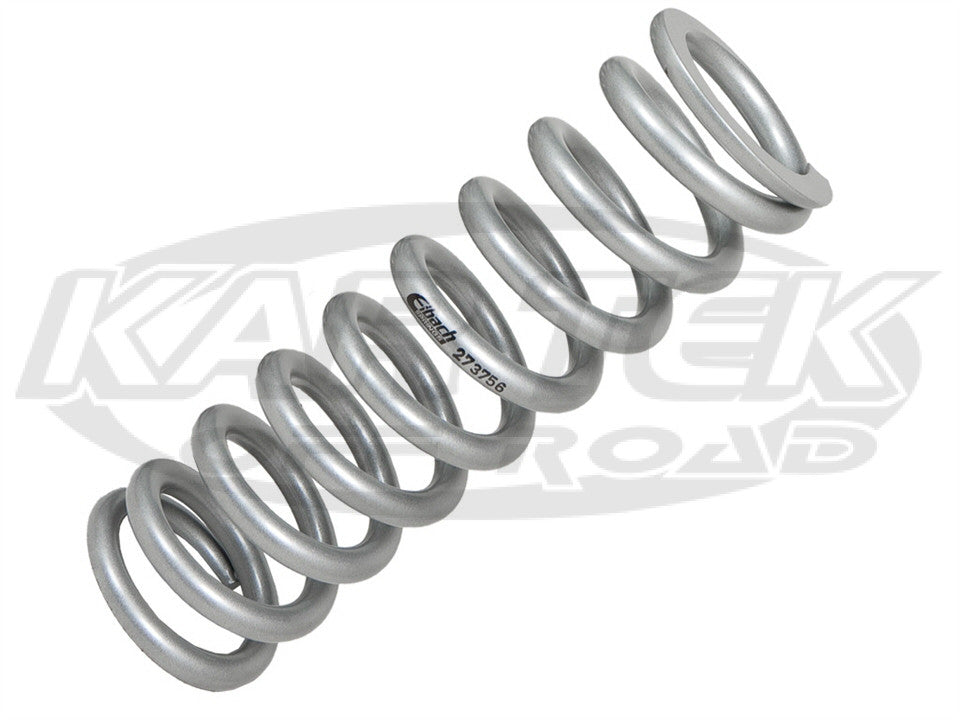

Silver Eibach 175 Pound 16" Tall Spring For 2.5" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Racegear WA

$392.78 $412.42
SKU: RGWA-ERS1600300175

If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
1600.300.0175s
1600-300-0175s
Length: 16 Inches / 406mm
Inside Diameter: 3 Inches / 76mm
Spring Rate: 175 lbs/inch - 3.13 kg/mm - 31 N/mm
Full Compressed Height: 5.31 Inches / 135mm
Travel: 10.69 Inches / 272mm
Load At Full Compression: 1869lbs / 8314N
Weight: 5.82lbs / 2.64kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position
