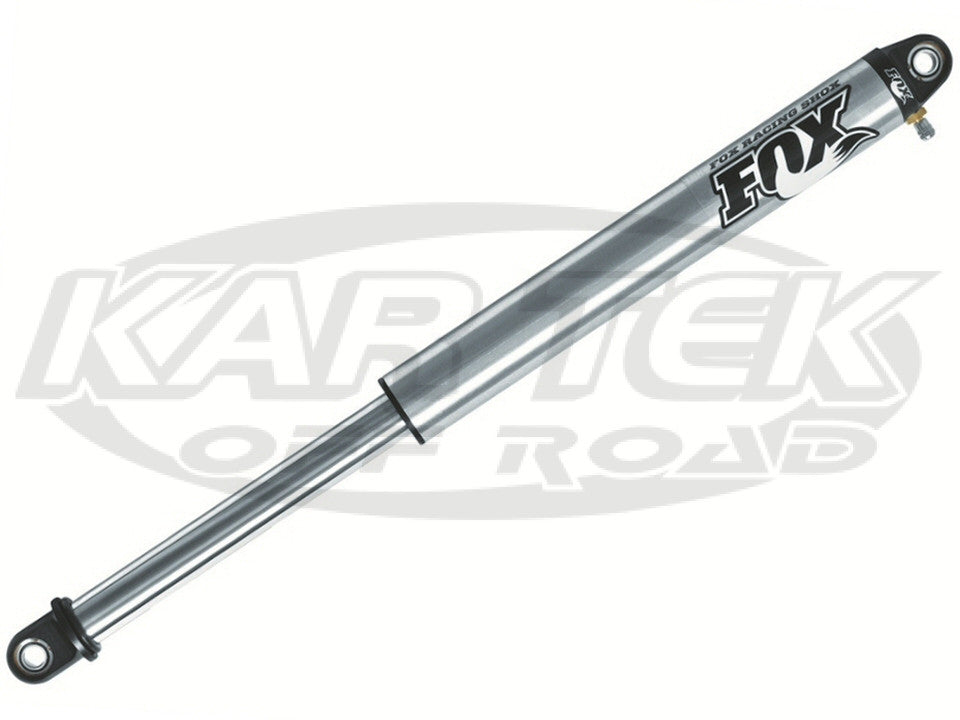

Fox Racing Air Shocks 2" Body 14" Stroke 1-1/4" Shaft Emulsion Shock Without Reservoir
Invented by Bob Fox in 1974, air shocks offer infinite ride height settings with simple nitrogen gas pressure changes in addition to their compression and rebound damping adjustability. Air shocks provide a compact and lightweight alternative to coil-over shocks where space is an issue.
Factory Series 980-02-020 Dimensions:
2.0" Diameter
14" Travel
35.330" Extended
21.330" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Maximum Load: 500lbs Per Shock
Factory Series 980-02-020 Dimensions:
2.0" Diameter
14" Travel
35.330" Extended
21.330" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Maximum Load: 500lbs Per Shock
Invented by Bob Fox in 1974, air shocks offer infinite ride height settings with simple nitrogen gas pressure changes in addition to their compression and rebound damping adjustability. Air shocks provide a compact and lightweight alternative to coil-over shocks where space is an issue.
Factory Series 980-02-020 Dimensions:
2.0" Diameter
14" Travel
35.330" Extended
21.330" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Maximum Load: 500lbs Per Shock
Factory Series 980-02-020 Dimensions:
2.0" Diameter
14" Travel
35.330" Extended
21.330" Collapsed
1.25" Shaft Diameter
Shaft Material: 4130 Hollow Chromoly
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
40 Compression / 90 Rebound Standard Valving
Maximum Load: 500lbs Per Shock
