Home → Shocks & Springs → Silver Eibach 600 Pound 22" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

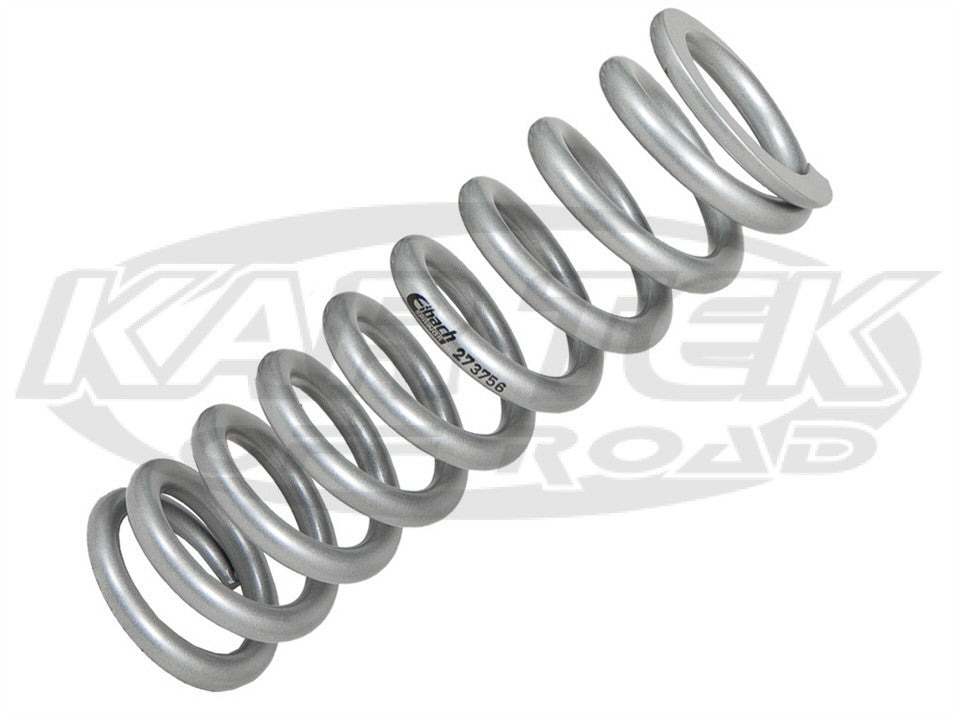

Silver Eibach 600 Pound 22" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Racegear WA

$1,112.89 $1,168.53
SKU: RGWA-ERS2200375600

← Previous Product Next Product →
On a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
2200.375.0600s
2200-375-0600s
Length: 22 Inches / 559mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 600 lbs/inch - 10.71 kg/mm - 105 N/mm
Full Compressed Height: 11 Inches / 279mm
Travel: 11 Inches / 279mm
Load At Full Compression: 6601lbs / 29363N
Weight: 28.28lbs / 12.83kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position


On a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
2200.375.0600s
2200-375-0600s
Length: 22 Inches / 559mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 600 lbs/inch - 10.71 kg/mm - 105 N/mm
Full Compressed Height: 11 Inches / 279mm
Travel: 11 Inches / 279mm
Load At Full Compression: 6601lbs / 29363N
Weight: 28.28lbs / 12.83kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position
