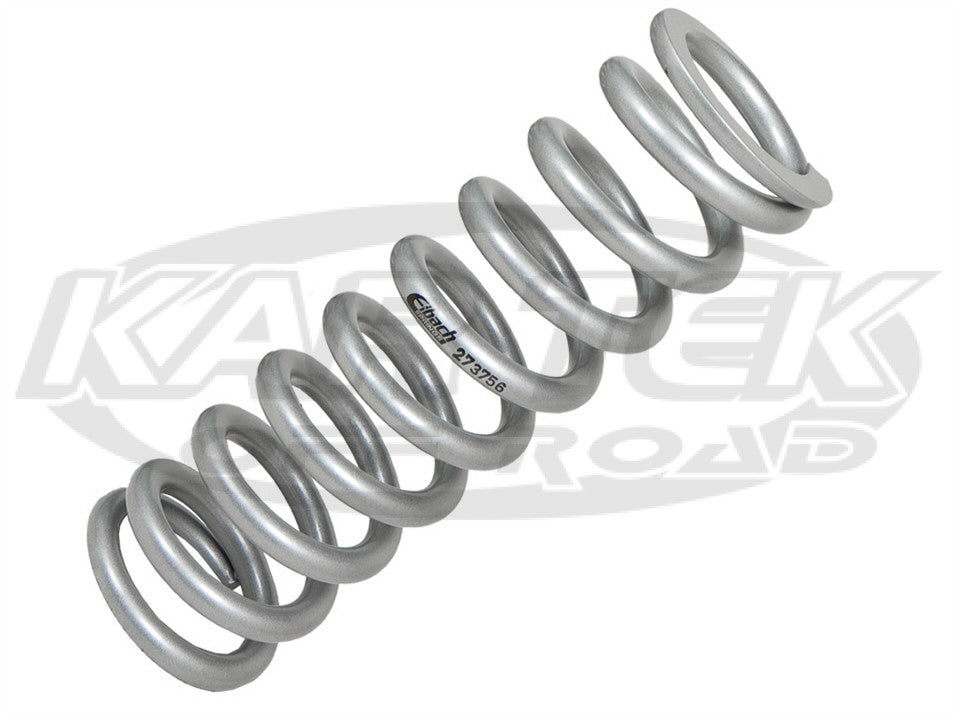

Silver Eibach 550 Pound 24" Tall Spring For 3" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Racegear WA

$1,112.89 $1,168.53
SKU: RGWA-ERS2400375550

← Previous Product Next Product →
On a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
2400.375.0550s
2400-375-0550s
Length: 24 Inches / 610mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 550 lbs/inch - 9.82 kg/mm - 96 N/mm
Full Compressed Height: 11.91 Inches / 303mm
Travel: 12.09 Inches / 307mm
Load At Full Compression: 6652lbs / 29589N
Weight: 30.66lbs / 13.91kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position


On a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
2400.375.0550s
2400-375-0550s
Length: 24 Inches / 610mm
Inside Diameter: 3.75 Inches / 95mm
Spring Rate: 550 lbs/inch - 9.82 kg/mm - 96 N/mm
Full Compressed Height: 11.91 Inches / 303mm
Travel: 12.09 Inches / 307mm
Load At Full Compression: 6652lbs / 29589N
Weight: 30.66lbs / 13.91kgs

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position
