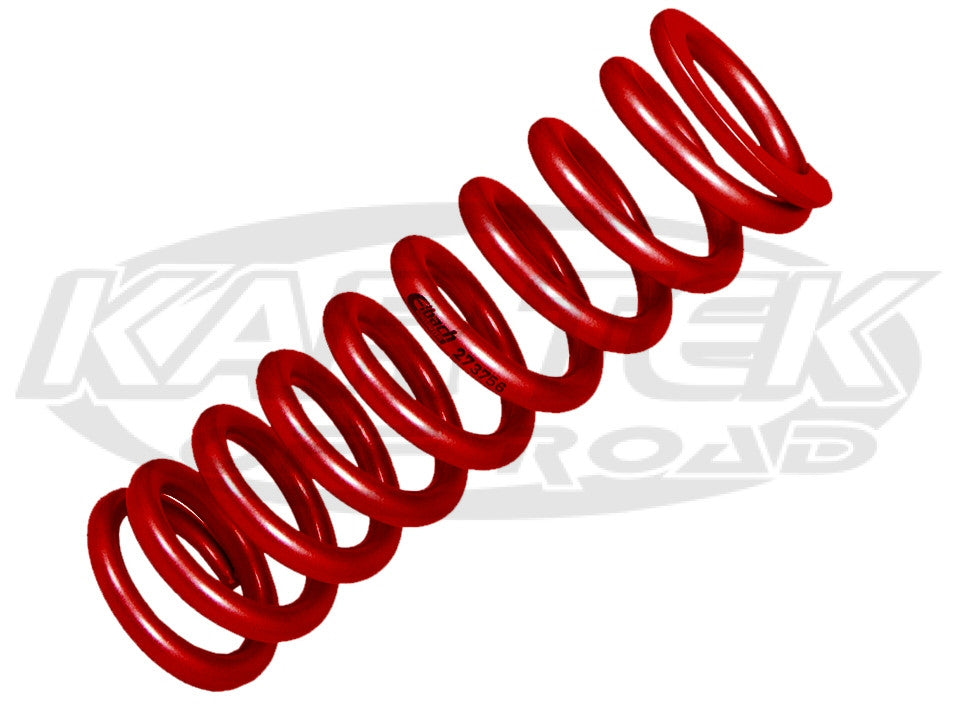

Red Eibach 975 Pound 6" Tall Spring For 2" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.
Eibach Part Number:
0600.250.0975
0600-250-0975
Length: 6 Inches / 152mm
Inside Diameter: 2.5 Inches / 64mm
Spring Rate: 975 lbs/inch - 17.41 kg/mm - 171 N/mm
Full Compressed Height: 3.03 Inches / 77mm
Travel: 2.97 Inches / 75mm
Load At Full Compression: 2896lbs / 12882N
Weight: 3.11lbs / 1.41kgs
