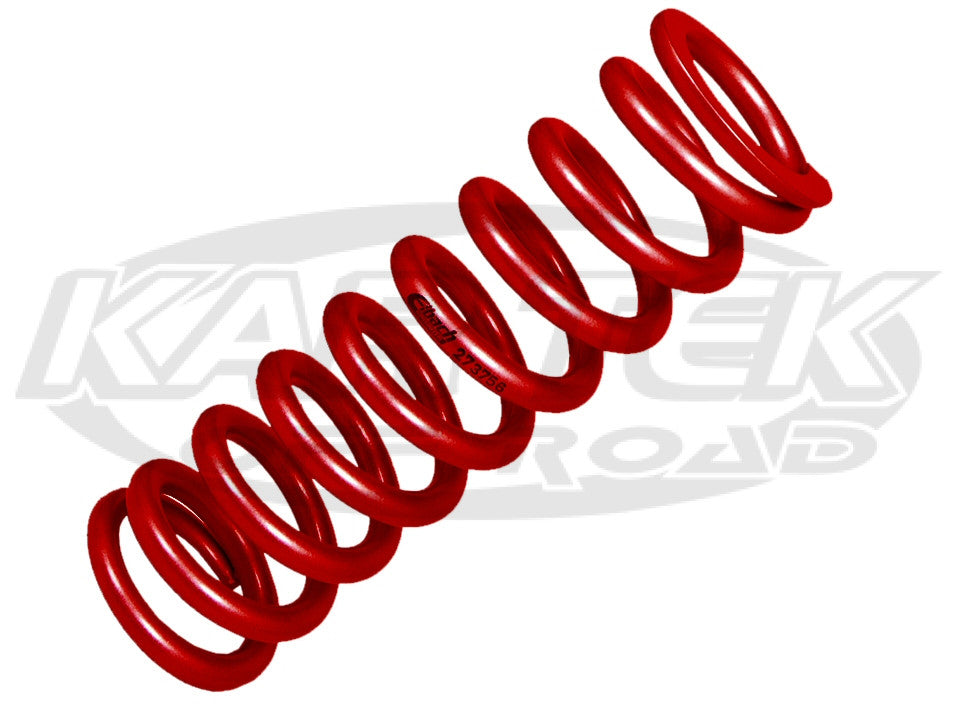

Red Eibach 425 Pound 8" Tall Spring For 2" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.
Eibach Part Number:
0800.250.0425
0800-250-0425
Length: 8 Inches / 203mm
Inside Diameter: 2.5 Inches / 64mm
Spring Rate: 425 lbs/inch - 7.59 kg/mm - 74 N/mm
Full Compressed Height: 3.17 Inches / 81mm
Travel: 4.83 Inches / 123mm
Load At Full Compression: 2053lbs / 9132N
Weight: 2.76lbs / 1.25kgs
0800.250.0425
0800-250-0425
Length: 8 Inches / 203mm
Inside Diameter: 2.5 Inches / 64mm
Spring Rate: 425 lbs/inch - 7.59 kg/mm - 74 N/mm
Full Compressed Height: 3.17 Inches / 81mm
Travel: 4.83 Inches / 123mm
Load At Full Compression: 2053lbs / 9132N
Weight: 2.76lbs / 1.25kgs
