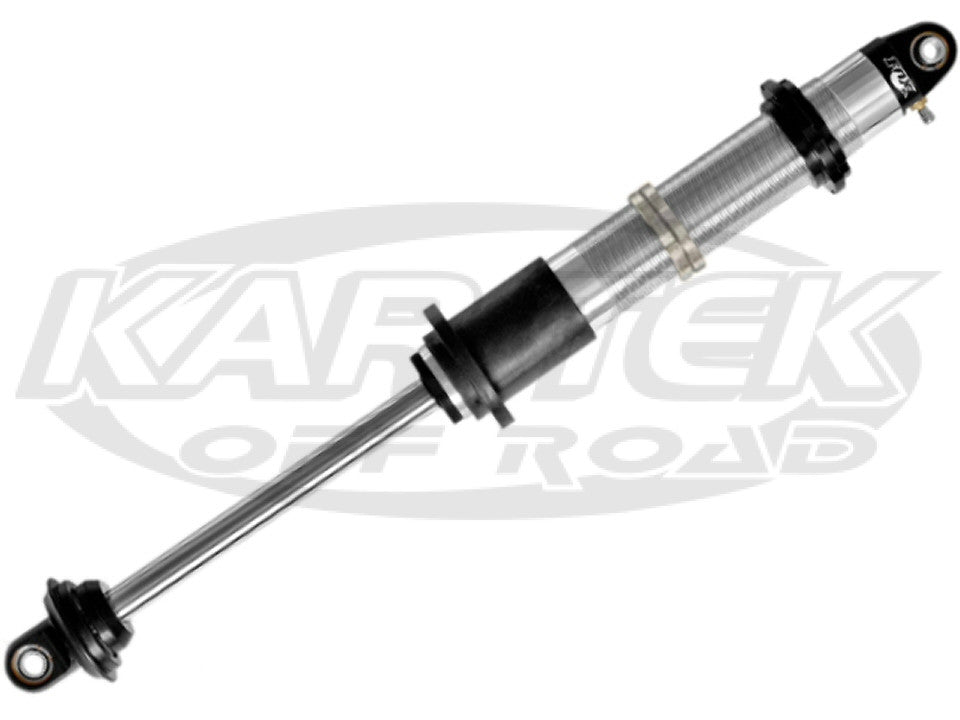

Fox Racing Shocks 2" Coil Over Body 16" Stroke 7/8" Diameter Shaft Emulsion Shock Without Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-057 Dimensions:
Setup For Dual Spring Rate
35" Maximum Combined Total Spring Length
Typically Customers Purchase 16" Top Spring and 18" Bottom Spring
2.0" Diameter
16.0" Travel
40.100" Extended
24.100" Collapsed
0.875" Shaft Diameter
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
