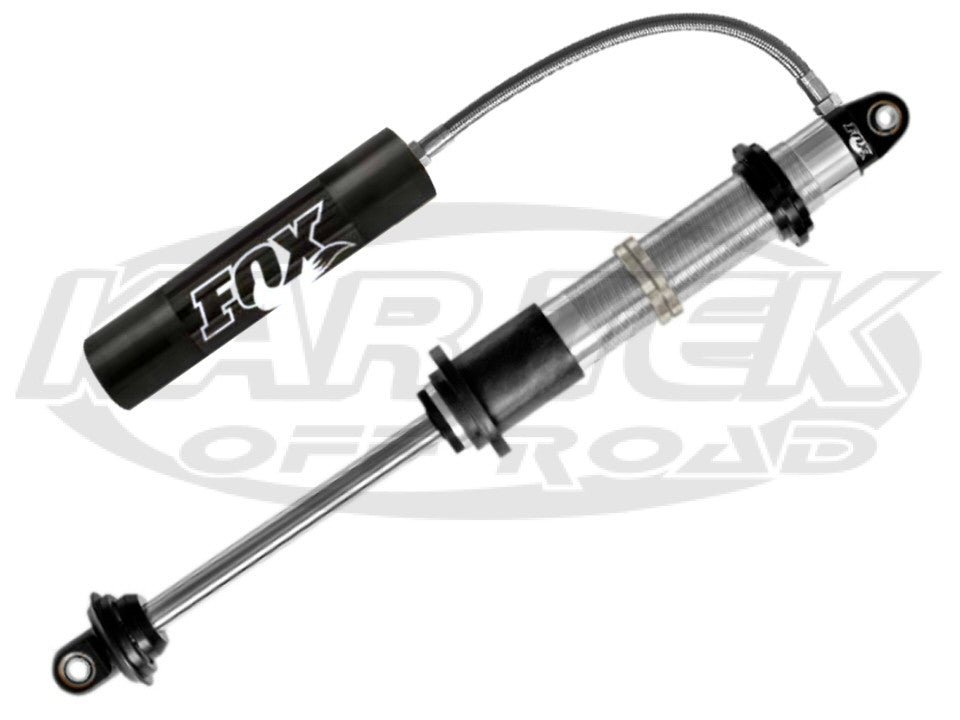

Fox Racing Shocks 2" Coil Over Body 10" Stroke 7/8" Diameter Shaft With Hose Remote Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 980-02-008 Dimensions:
Setup For Dual Spring Rate
22" Maximum Combined Total Spring Length
Typically Customers Purchase 10" Top Spring and 12" Bottom Spring
2.0" Diameter
10.0" Travel
26.100" Extended
16.100" Collapsed
2" x 11" Reservoir
14" Reservoir Hose
0.875" Shaft Diameter
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
