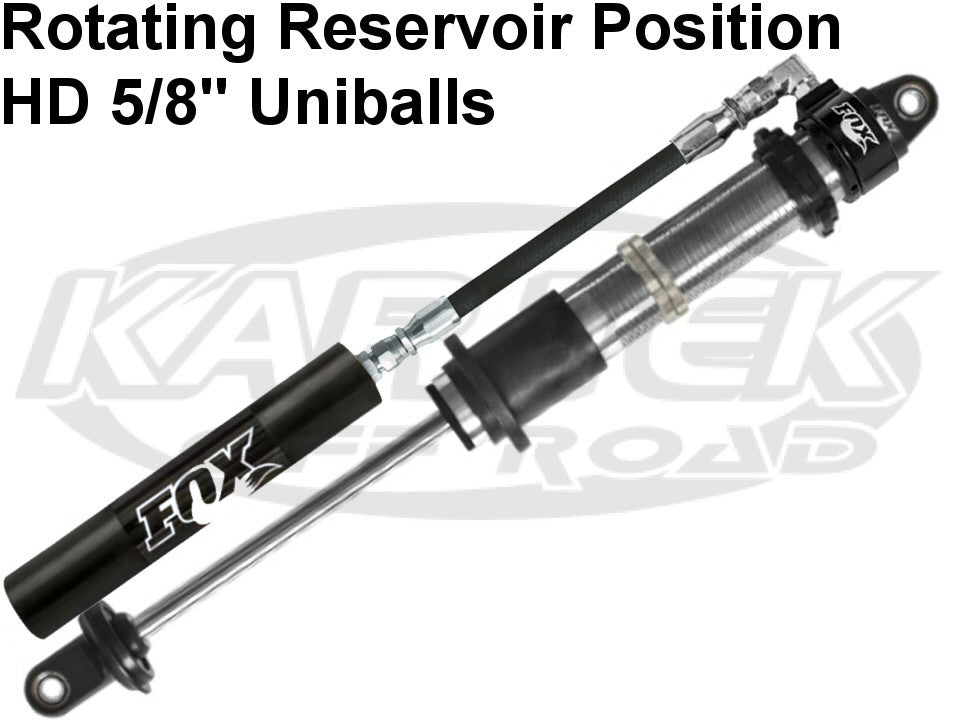

Fox Racing Shocks 2" Coil Over 18" Stroke 7/8" Shaft Rotating Hose Remote Reservoir 5/8" HD Uniballs
This shock has heavy duty 5/8" Uniballs
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Factory Series 983-02-078 Dimensions:
Setup For Dual Spring Rate
36" Maximum Combined Total Spring Length
Typically Customers Purchase 18" Top Spring and 18" Bottom Spring
2.0" Diameter
18.0" Travel
44.150" Extended
26.180" Collapsed
2" x 11" Reservoir
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
50 Compression / 70 Rebound Standard Valving
Position Your Reservoir Hose Any Direction:
