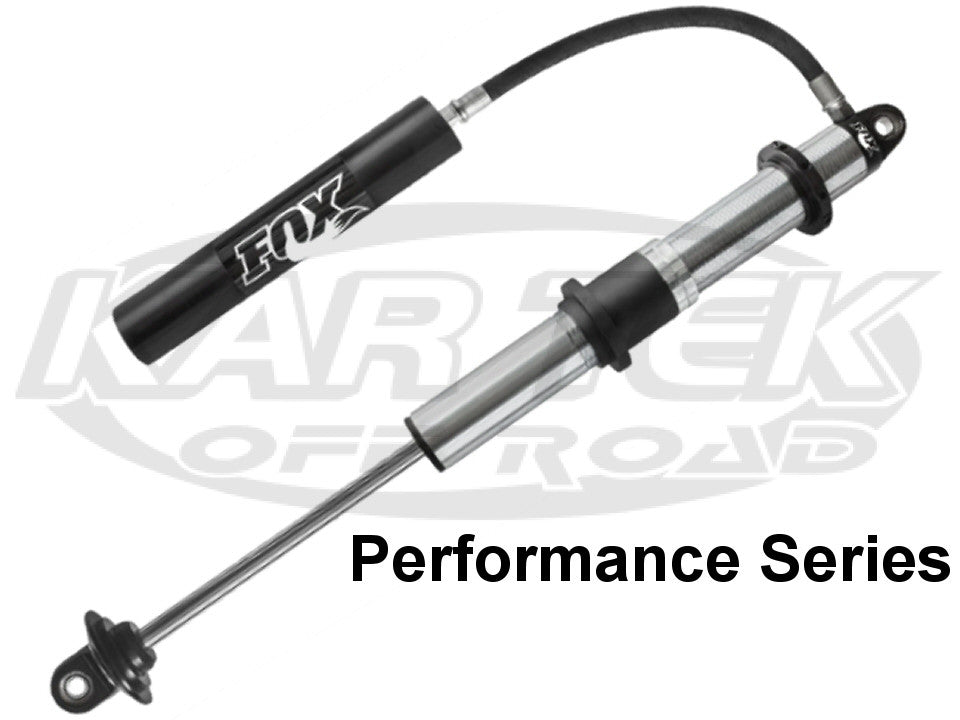

Fox Performance Series Shocks 2.5" Coil Over Body 18" Stroke 7/8" Shaft With Hose Remote Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.
Performance Series 983-02-107 Dimensions:
Setup For Dual Spring Rate
" Maximum Combined Total Spring Length
Typically Customers Purchase " Top Spring and " Bottom Spring
2.5" Diameter
18.0" Travel
45.450" Extended
27.440" Collapsed
2.5" x 14" Reservoir
18" Reservoir Hose
0.875" Shaft Diameter
1.50" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
