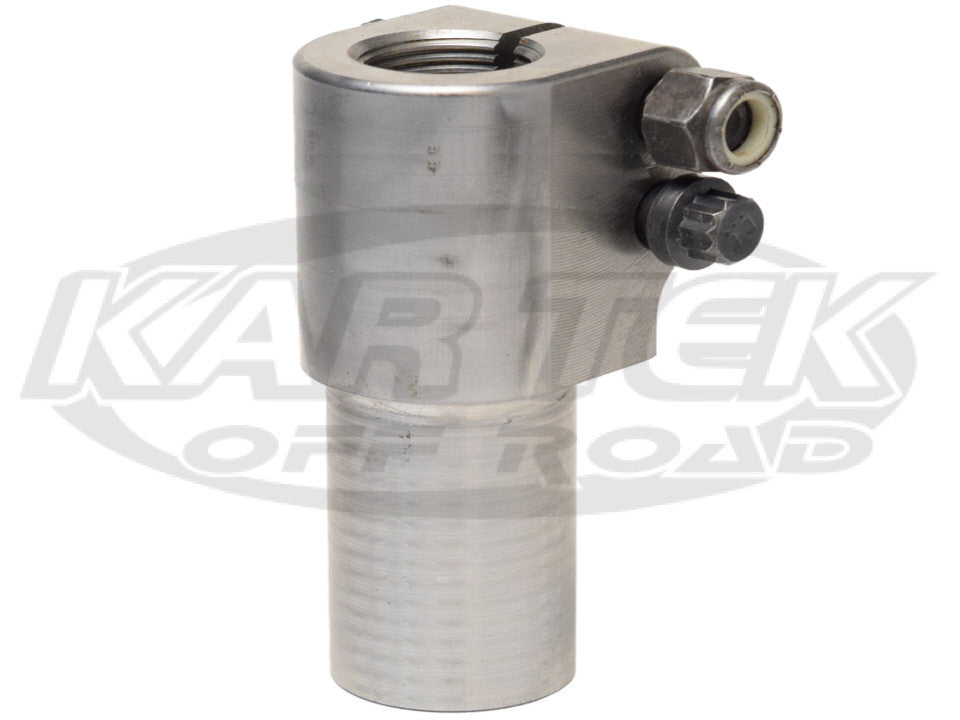

Two Bolt Stepped Round Pinch Bungs Left Hand Thread For 1-1/4" Heim Joint 1-3/4" 0.120" Wall Tube

Racegear WA

$451.67 $474.26
SKU: RGWA-KTK1250TBLTT2

Pinch bungs use a clamping design instead of a jam nut to prevent the heim joint from rotating. Besides tie rods, threaded bungs can be used to make sway bar links, pan hard bars, 3 link, 4 link, 5 link, trac bars, drag links, trailing arms, ladder bars, or traction bars. Also they're commonly used to make a-arms, upper control arms and lower control arms. Will work with FK Rod Ends, Aurora Bearing Company, or NHBB New Hampshire Ball Bearing.

Specifications:
Material: Chromoly
Thread: 1-1/4" -12 Fine Thread
Total Length: 3-15/16"
Shoulder Length: 2-1/8"
Head Length: 1-13/16"
Fits Into: 1-3/4" 0.120" Wall Tubing
Base Diameter: 1-1/2"

2 bolt round stepped threaded pinch bungs for heim joints or rod ends dimensions
