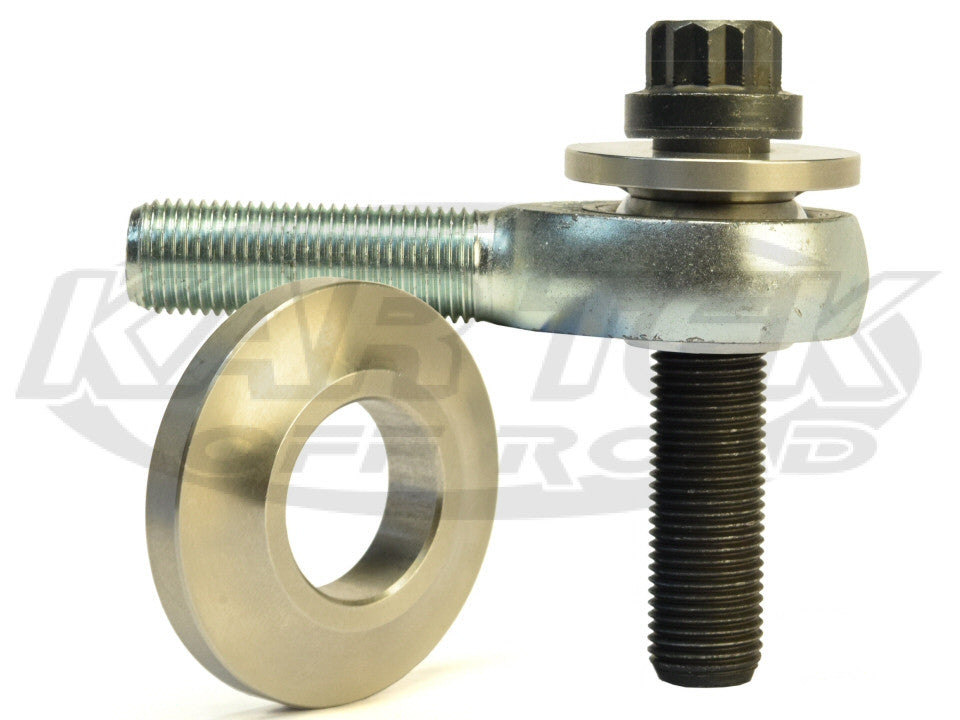

Heim Joint Safety Washer Prevents 5/8 Inch Allen Or Twelve Point Bolt From Pulling Through The Heim
Safety washers were designed to prevent the rod end from going over a twelve point or allen bolt head if the heim joint fails. There is a slight tapered profile that will allow the heim joint to rotate without hitting the edge of the safety washer.
Dimensions:
Inside Diameter: 5/8 Inch
Outside Diameter: 1-3/8 Inches
Thickness: 0.250 Inches
Fits:
Heim Joints
Rod Ends
Rose Joints
Spherical Bearings
Dimensions:
Inside Diameter: 5/8 Inch
Outside Diameter: 1-3/8 Inches
Thickness: 0.250 Inches
Fits:
Heim Joints
Rod Ends
Rose Joints
Spherical Bearings
