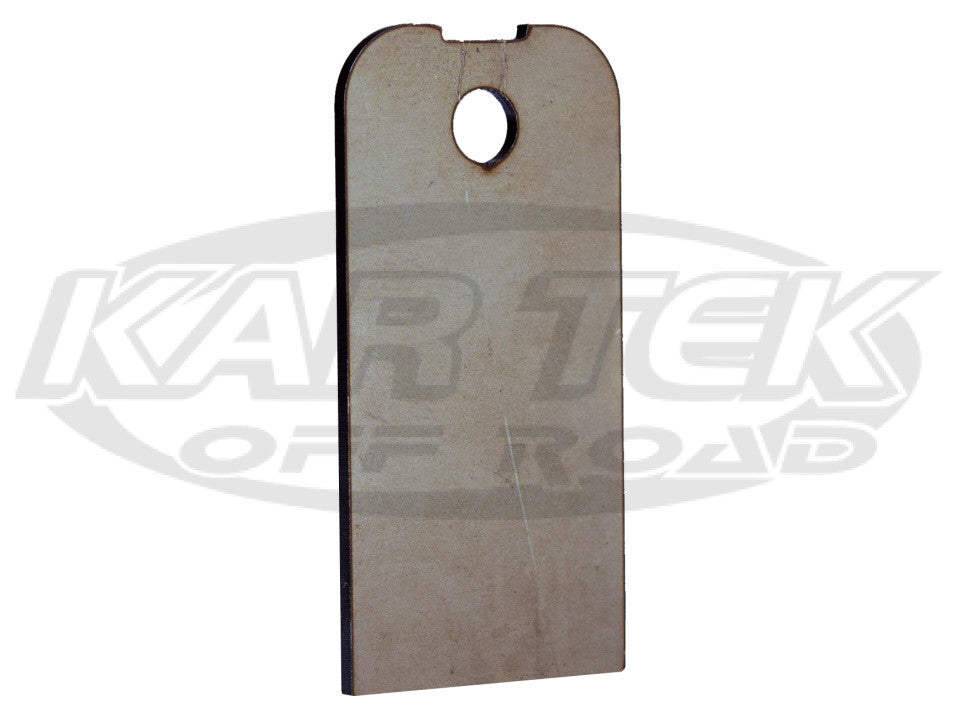

Flat Steel Body Panel Mounting Tab 3-1/2" Bottom To Center Of Hole For Use With Our Clip On U-Nuts
This tab was designed for our clip-on u-nuts for easier panel installation and removal. The notch cut out of the top prevents the u-nut from spinning.
Specifications:
Material: Mild Steel
Thickness: 1/8"
Width: 2"
Length To Center: 3-1/2"
Total Length: 4-1/8"
Top Edge To Center: 1/2"
Center Hole: 7/16"
