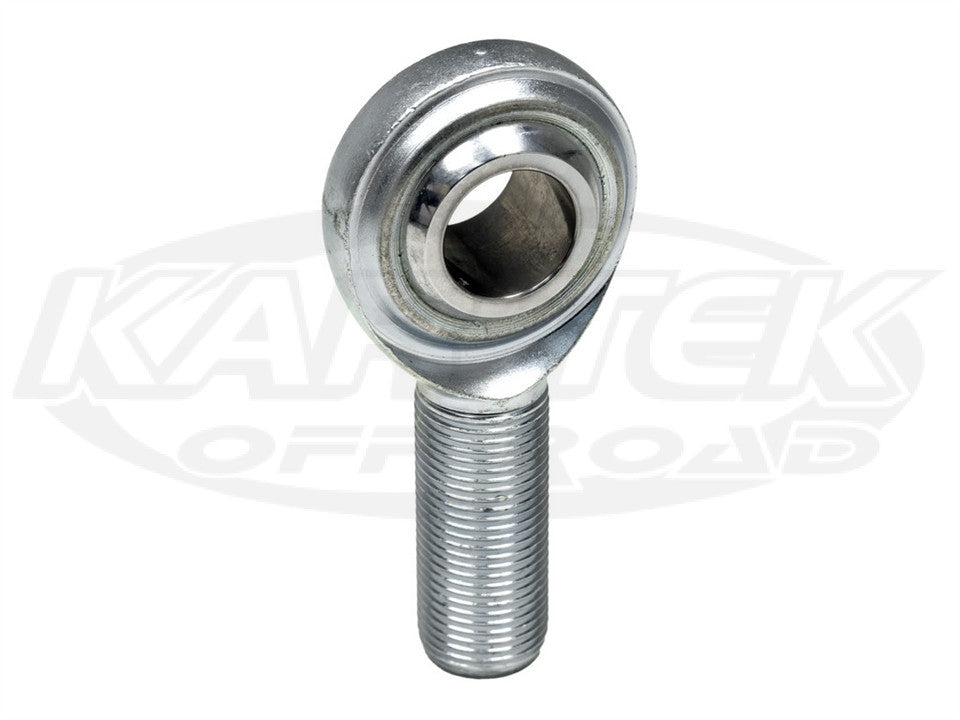

FK Rod Ends Oversize CM Series Heim Joint .757 Inch Bore 3/4-16 Right Hand Thread For Steering Shaft
This heim joint has a slightly over sized hole to allow a chromed or painted steering shaft to go through it.
FK's CM series heim joint rod end bearings. A 2-piece design that is chrome plated for light duty applications such as shifter linkages, steering shaft supports and throttle linkages. Available with left handed threads.
Features
FK's CM series heim joint rod end bearings. A 2-piece design that is chrome plated for light duty applications such as shifter linkages, steering shaft supports and throttle linkages. Available with left handed threads.
Features
- 2 Piece, Low Carbon Steel Body
- Hard Chrome Plated
- 52100 Steel Ball
- For light duty applications
Part Number | Bore | Thread Pitch | Direction |
FKB-CM3 | 3/16" bore | 10-32 thread | Right Hand |
FKB-CM4 | 1/4" bore | 1/4"-28 thread | Right Hand |
FKB-CM5 | 5/16" bore | 5/16"-24 thread | Right Hand |
FKB-CM6 | 3/8" bore | 3/8"-24 thread | Right Hand |
FKB-CM7 | 7/16" bore | 7/16"-20 thread | Right Hand |
FKB-CM8 | 1/2" bore | 1/2"-20 shank | Right Hand |
FKB-CM10 | 5/8" bore | 5/8"-18 thread | Right Hand |
FKB-CM12 | 3/4" bore | 3/4"-16 thread | Right Hand |
FKB-CM12757 | 0.757 bore | 3/4"-16 thread | Right Hand |
