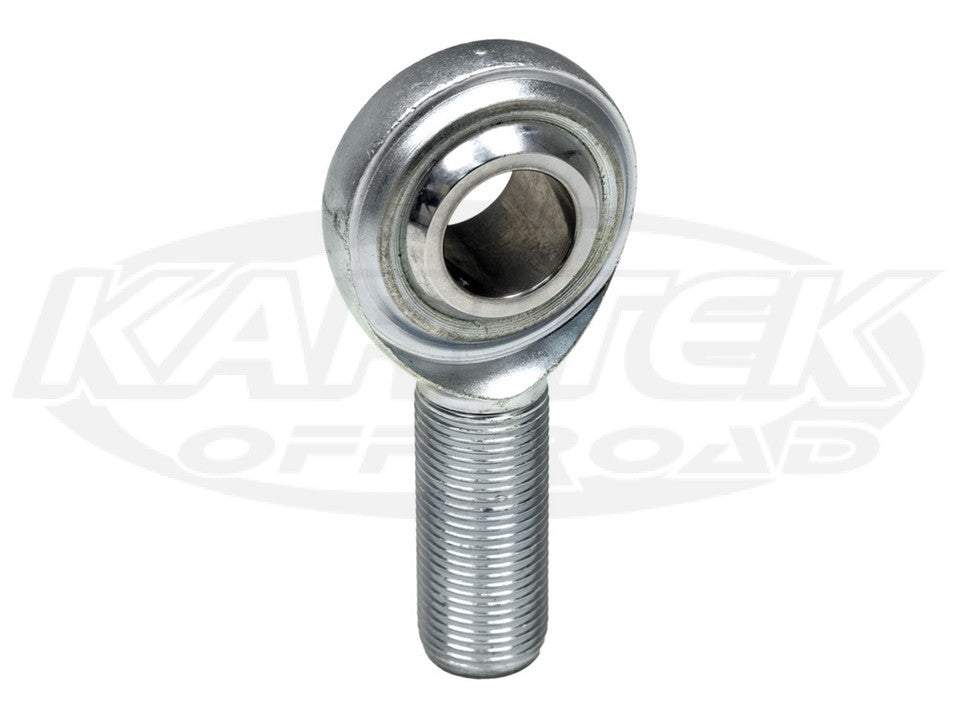

FK Rod Ends CM Series Heim Joint 3/8 Inch Bore 3/8-24 Right Hand Male Thread
FK's CM series heim joint rod end bearings. A 2-piece design that is chrome plated for light duty applications such as shifter linkages, steering shaft supports and throttle linkages. Available with left handed threads.
Features
Features
- 2 Piece, Low Carbon Steel Body
- Hard Chrome Plated
- 52100 Steel Ball
- For light duty applications
| Part Number | Bore | Thread Pitch | Direction |
| FKB-CM3 | 3/16" bore | 10-32 thread | Right Hand |
| FKB-CM4 | 1/4" bore | 1/4"-28 thread | Right Hand |
| FKB-CM5 | 5/16" bore | 5/16"-24 thread | Right Hand |
| FKB-CM6 | 3/8" bore | 3/8"-24 thread | Right Hand |
| FKB-CM7 | 7/16" bore | 7/16"-20 thread | Right Hand |
| FKB-CM8 | 1/2" bore | 1/2"-20 shank | Right Hand |
| FKB-CM10 | 5/8" bore | 5/8"-18 thread | Right Hand |
| FKB-CM12 | 3/4" bore | 3/4"-16 thread | Right Hand |
| FKB-CM12757 | 0.757 bore | 3/4"-16 thread | Right Hand |
